Capture and motion analysis platform



Capture and motion analysis platform

It is a platform for capturing and analyzing movement that is composed of:
- an inertial sensor measurement system (IMU) from Xsens composed of 9 MTi inertial sensors.
- 4 Optitrack infrared cameras and 2 RGB-Depth cameras (Kinect).
- the Tekscan F-Scan system providing dynamic pressure and force measurements at the feet operated for gait analysis.
- the Delsys Trigno system, consisting of 15 EMG + IMU hybrid wireless sensors

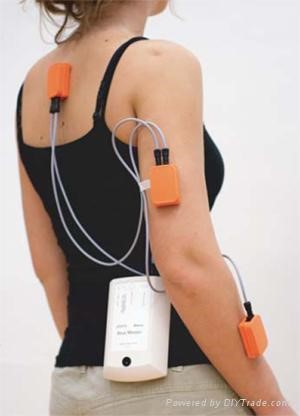

The Xsens is a 3D motion tracker based on a inertial measurement unit, each sensor is connected to the XbusMaster who communicates to a wireless receiver (WR-A) by bluetooth. The WR-A is connected by usb to the computer.

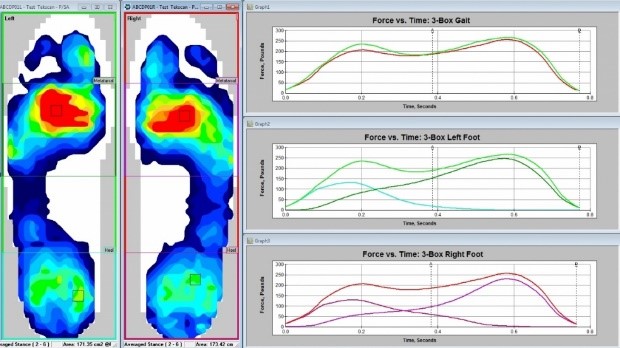

FSR (Force Sensitive Resistor)-TekScan
Is an “In-shoe systems” that provide detailed information about what is actually occurring inside the shoe. A Tekscan system consists of scanning electronics, software and thin-film sensor. Evaluating plantar pressure through the use of an in-shoe system helps provide a better understanding of foot function.

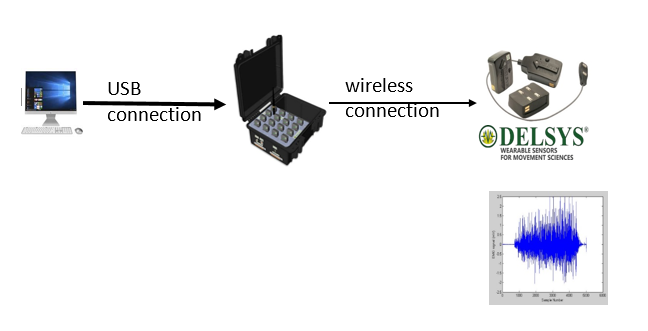

The Trigno Wireless EMG System is a high-performing device designed to make EMG signal detection reliable and easy. Each sensor is wirelessly connected to a central processing unit and this at the same time connected by USB to the PC.
